1,can work with any TELIKOU Intercom standard main station
2, free of external emission interference
3,stable and reliable per

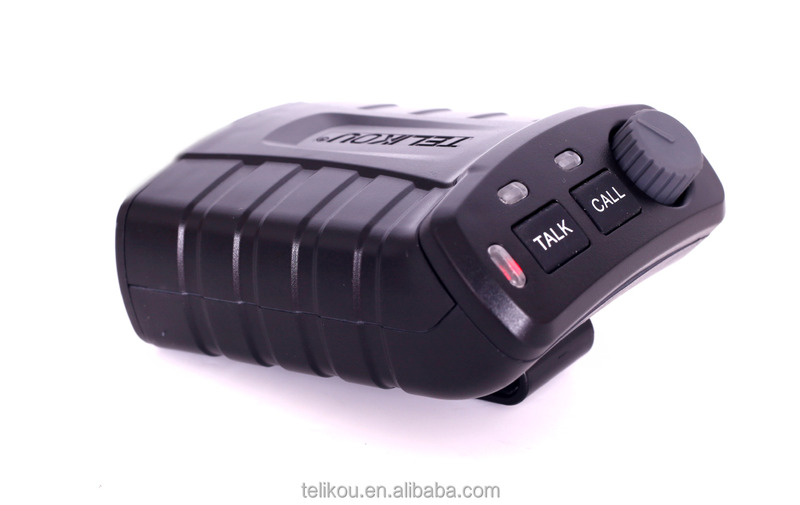

Hello thank you to choose our BK-101 wired intercom belt pack

it is widely used in different industry

it is used very convenient , and have very high quality .

this headset is our new design headset with high quality

and have two kind of style which is dynamic and electret one

detail information:

1. Connect BK-101 belt pack to a 2-wire intercom main station or belt pack by XLR-3 cable. If belt pack receives DC power, the red Power LED will light.

2. Turn volume control knob to the end by anticlockwise rotation, then plug in the headset.

3. Double click ‘TALK’ button quickly will latch the microphone. The green indicator is ON.

4. Adjust sidetone (Sidetone adjustment is next to the belt-clip) and volume level; make sure the voice level which you heard from earphone is minimum.

5. Press ‘CALL’ button send a call signal to main station or other belt pack.

6. When the communication is finished, click ‘TALK’ button to turn off the microphone.

Basic operation

1. TALK Button

TALK button turns on or off the microphone of headset which plugged in the bottom of belt pack. Green indication LED.

TALK button is an electronic button. It supports RMK function.

Double click latches the TALK button. Hold the button is PTT mode.

2. CALL Button

Pressing call button will send a call signal to intercom system. And red LED indicator above will light.

3. Volume Control

This control is used to adjust the volume level which heard from connected headset.

4. Power LED

A Red LED lights if BK-101 is powered.

5. TALK LED

A green LED indicator is controlled by TALK button..

6. Call LED

A red LED indicates a call signal is sent or received.

7. Headset connector

XLR-4M/5F / 3.5mm connector

Pin out configuration as follow:

Pin 1--Head Microphone common

Pin 2--Head Microphone hot

Pin 3--Earphone common

Pin 4--Earphone hot

Pin 5--Null

8. Intercom cable connectors

A pair of internal parallel connected XLR-3 connectors is set for loop through connection of the intercom station.

Pin out configuration as follow:

Pin 1--Common

Pin 2--DC supply(15-30V)

Pin 3--Audio signal

8. Intercom cable connectors

A pair of internal parallel connected XLR-3 connectors is set for loop through connection of the intercom station.

Pin out configuration as follow:

Pin 1--Common

Pin 2--DC supply(15-30V)

Pin 3--Audio signal

we have a lot of advantages:

1)any kind of express you want

2)packing as customer's requirement
3)reasonable price with high quality
4)OEM is welcome, pls feel free to contact with us, I will try my best to let you know more about our product.
5) a trial order or samle orders are also welcomed
7)Excellent after sale service

Payment
You can pay us through T/T, paypal, western union
Price term: FOB beijing
Full payment should be made before we send goods to you
The customer don't have to responsible for any tax or bank charges by their countries.

welcome to contact us!
